TCF
非回轉型扭力傳感器
規格容量 |
0.2Nm~5000N-m |
規格輸出電壓 |
1mV/V±1%(0.2Nm為0.7mV/V) |
非直線性 |
0.3% R.O. (0.2Nm~5N-m為0.5%R.O.) |
磁滯性 |
0.3% R.O. (0.2Nm~5N-m為0.5%R.O.) |
重復性 |
0.2% R.O. |
建議施加電壓 |
10V |
容許施加電壓 |
18V |
輸入/出阻抗 |
350Ω±1% |
絕緣阻抗 |
2000MΩ以上 |
溫度對零點之影響 |
±0.01%R.O./ ℃ |
溫度對輸出之影響 |
±0.01%/℃ |
容許過負荷 |
120%R.C. |
電纜線 |
∮10、4芯隔離線,長3m(500N-m以上) |

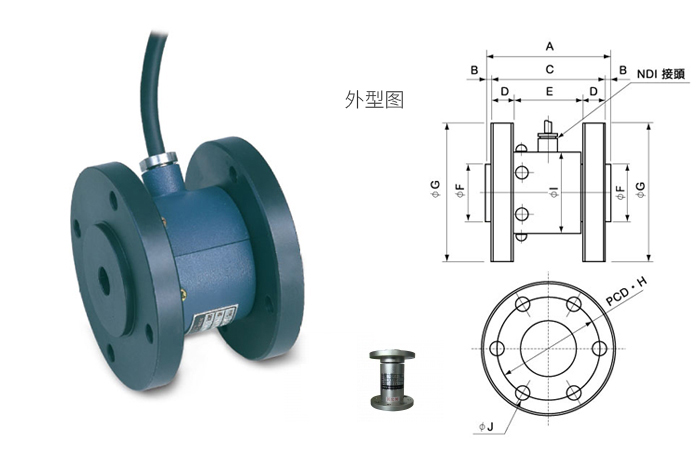

型號 |
規格容量 |
A |
B |
C |
D |
E |
φF |
φG |
H |
I |
φJ(rèn) |
重量 |
(kg) |
||||||||||||
TCF-0.2N |
0.2N?m |
61 |
3 |
55 |
5 |
45 |
20 |
48 |
38 |
26 |
2×4-4.5 |
0.32 |
TCF-0.5N |
0.5N?m |
61 |
3 |
55 |
5 |
45 |
20 |
48 |
38 |
26 |
2×4-4.5 |
0.32 |
TCF-1N |
1N?m |
61 |
3 |
55 |
10 |
35 |
40 |
80 |
66 |
48 |
2×4-6.5 |
1.2 |
TCF-2N |
2N?m |
61 |
3 |
55 |
10 |
35 |
40 |
80 |
66 |
48 |
2×4-6.5 |
1.2 |
TCF-5N |
5N?m |
61 |
3 |
55 |
10 |
35 |
40 |
80 |
66 |
48 |
2×4-6.5 |
1.2 |
TCF-10N |
10N?m |
61 |
3 |
55 |
10 |
35 |
40 |
80 |
66 |
48 |
2×4-6.5 |
1.2 |
TCF-20N |
20N?m |
61 |
3 |
55 |
10 |
35 |
40 |
80 |
66 |
48 |
2×4-6.5 |
1.2 |
TCF-50N |
50N?m |
61 |
3 |
55 |
10 |
35 |
40 |
80 |
66 |
48 |
2×4-6.5 |
1.2 |
TCF-100N |
100N?m |
61 |
3 |
55 |
10 |
35 |
40 |
80 |
66 |
48 |
2×4-6.5 |
1.3 |
TCF-200N |
200N?m |
86 |
3 |
80 |
15 |
50 |
40 |
98 |
78 |
58 |
2×6-10.5 |
2.20 |
TCF-500N |
500N?m |
130 |
5 |
120 |
20 |
80 |
60 |
118 |
95 |
58 |
2×6-10.5 |
4.20 |
TCF-1000N |
1000N?m |
136 |
3 |
130 |
20 |
90 |
60 |
146 |
115 |
75 |
2×6-14 |
6.50 |
TCF-2000N |
2000N?m |
146 |
3 |
140 |
25 |
90 |
60 |
166 |
130 |
88 |
2×8-18 |
9.70 |
TCF-5000N |
5000N?m |
176 |
3 |
170 |
35 |
100 |
60 |
197 |
155 |
98 |
2×12-17 |
18.00 |
