LRM
拉伸及壓縮型荷重元
規(guī)格容量 |
10N~20KN |
規(guī)格輸出電壓 |
2mV/V 1%(10N-50N為1m/V/V,100N為1.5mV/V |
規(guī)格輸出電壓 |
0.05% R.O. |
磁滯性 |
0.05% R.O. |
重復性 |
0.05% R.O. |
建議施加電壓 |
10V(10N~50N為5V) |
容許施加電壓 |
18V(10N~50N為10V) |
輸入/出阻抗 |
350Ω±1% |
絕緣阻抗 |
2000MΩ以上 |
溫度補償范圍 |
-10~+70℃ |
容許溫度范圍 |
-20~+100℃ |
溫度零點之影響 |
±0.01%R.O./℃ |
溫度對輸出之影響 |
±0.01%/℃ |
容許過負荷 |
120%R.C. |
電纜線 |
∮6、4芯隔離線,長2m |

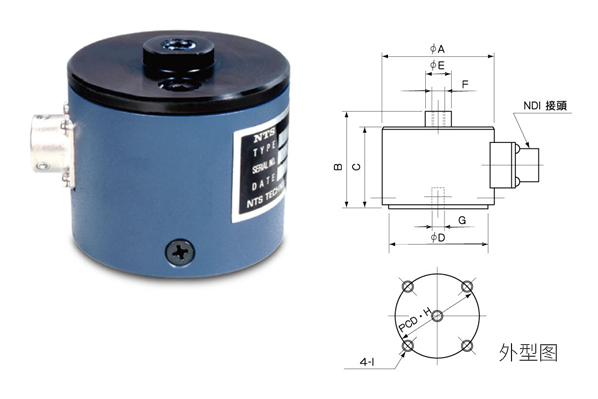

型號 |
規(guī)格容量 |
φA |
B |
C |
φD |
φE |
F |
G |
H |
I |
重量 |
( kg ) |
|||||||||||
LRM-20N |
20N |
52 |
45 |
38 |
47 |
12 |
M6P1 Depth 8 |
M6P1 Depth 6 |
38 |
M4 Depth 6 |
0.26 |
LRM-50N |
50N |
52 |
45 |
38 |
47 |
12 |
M6P1 Depth 8 |
M6P1 Depth 6 |
38 |
M4 Depth 6 |
0.26 |
LRM-100N |
100N |
63 |
60 |
55 |
55 |
20 |
M10P1.5 Depth 15 |
M10P1.5 Depth 15 |
40 |
M5 Depth 10 |
0.95 |
LRM-200N |
200N |
63 |
60 |
55 |
55 |
20 |
M10P1.5 Depth 15 |
M10P1.5 Depth 15 |
40 |
M5 Depth 10 |
0.95 |
LRM-500N |
500N |
63 |
60 |
55 |
55 |
20 |
M10P1.5 Depth 15 |
M10P1.5 Depth 15 |
40 |
M5 Depth 10 |
0.95 |
LRM-1KN |
1kN |
70 |
65 |
60 |
64 |
20 |
M10P1.5 Depth 15 |
M10P1.5 Depth 15 |
40 |
M5 Depth 10 |
1.3 |
LRM-2KN |
2kN |
70 |
65 |
60 |
64 |
20 |
M10P1.5 Depth 15 |
M10P1.5 Depth 15 |
40 |
M5 Depth 10 |
1.3 |
LRM-5KN |
5kN |
70 |
85 |
85 |
60 |
- |
M12P1.75 Depth 15 |
M12P1.75 Depth 15 |
40 |
M5 Depth 10 |
1.7 |
LRM-10KN |
10kN |
88 |
110 |
110 |
80 |
- |
M18P1.5 Depth 22 |
M18P1.5 Depth 22 |
60 |
M8 Depth 12 |
3.5 |
LRM-20KN |
20kN |
98 |
110 |
110 |
90 |
- |
M18P1.5 Depth 22 |
M18P1.5 Depth 22 |
60 |
M8 Depth 12 |
4.5 |
